China Manufacturer High Lumen Outdoor IP65 100w Garden Parking Lot
Area All In One LED Solar Street Light

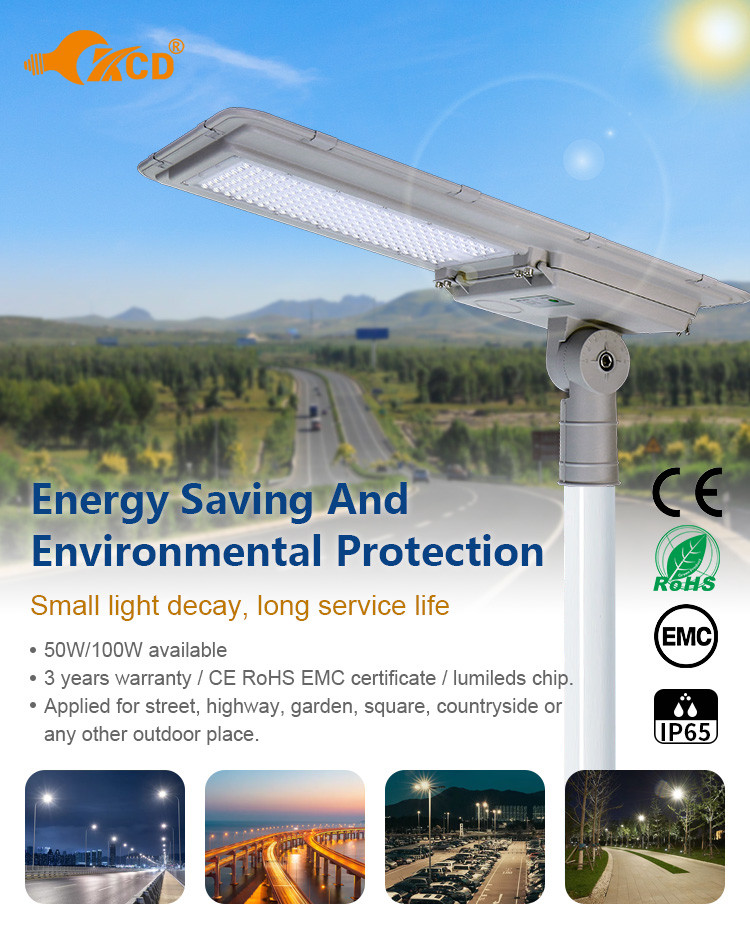

All In One Solar LED Street Light Description
All In One Solar LED Street Light means the solar panel is
integrated into the lamp body. This design eliminates complex
installation accessories such as brackets. lt will increase
installation efficiency.
Solar LED Street Light for Civil adopts the latest quick charging
scheme, and charging efficiency can be up to 50% higher than
similar products. For example, similar products use a 6V/12W solar
panel and the peak charging current is 2A; We use a 4V/12W solar
panel and the peak charging current is 3A. By comparison, the
charging efficiency of our products has been improved by 50%.
All In One Solar LED Street Light Specification
| Product Name | All In One Solar LED Street Light |
| Model No. | TR03 50W | TR03 100W |
| Watts | 50W | 100W |
| Led Chips | 96PCS SMD2385 | 240PCS SMD2385 |
| Lamp Size | 567*195*62mm | 667.5*217.6*62mm |
| Solar panel | 18W monocrystalline | 18W monocrystalline |
| Battery type | LiFeO4 18AH | LiFeO4 30AH |
| Suggestion Install height | 3-4m | 4-5m |
| CCT(Color Temperature) | 2700K-6500K |
| Material of housing | Die-casting aluminum+Momo solar panel |
| Charging time | 5-6h |
| Discharging time | 10-12h per day |
| Working mode | Light control+remote control |
| Applications | parking lot,plaza, walkway, road, street, driveway, residential,
landscape, yard, farmhouse, shop, home. |
All In One Solar LED Street Light Features
1. SMD3030/5050 High Efficiency Imported LED Chip, 170LM/W.
2. Aluminium alloy Integrated Design,Aluminum alloy case.
3. 180 degree adjustable bracket, suitable for various roads.
4. The maximum wattage can reach 150 watts, you can get customize
solar street light from us.
5. Night sensor + Microwave motion sensor+Remote Control+Time
control.
6. PWM/MPPT controller.
| Model NO. | Size | Power | Luminous Flux |
| KCD TR03-50W | 567*195*62mm | 50W | 170lm/w |
| KCD TR03-100W | 667.5*217.6*62mm | 100W | 170lm/w |
All In One Solar LED Street Light Application
The All In One Solar LED Street Light suitable for outdoor, parking
lot,plaza, walkway, road, street, driveway, residential, landscape,
yard, farmhouse, shop, home.
