IP65 New Green Energy ABS Design Radar Sensor 200W 300W 400W 500W
Outdoor All in One Solar Powered LED Street Lights
Solar Powered LED Street Lights Description
Solar Powered LED Street Lights is designed for highway & airport
lighting solutions.
TR-S Series Solar Powered LED Street Lights provides 15600LM and
15000lm system lumens optional since the best quality LEDs are
being applied. High brightness will definitely increase visibility
and reduce the risk of accidents in public areas at night.
Solar Powered LED Street Lights is a new revolutionary product
combining solar panels, lithium-ion batteries, smart controller,s
and LED technology. It is the best solution for areas that lack
electricity supply, rural areas with limited traffic access and
communications, small scale user community, and unattended working
place but with good climatology of sunlight radiation.
Solar Powered LED Street Lights Features
1. Adjustable mounting angle: 15°, 30°, 45°
2. Mounting type: wall mount & pole mount.
3. Humanized indicators: indicators of solar panel, battery & led
light make monitoring & evaluation simple.
4. Customizable lighting mode: users can choose pir motion sensing,
timing, and pir+timing three lighting modes according to
application needs.
5. TR-S series solar street light comes with a dusk to dawn
sensors, which automatically switches on the light in the evening
and off in the morning.
6. TR-S series solar street light are equipped with the latest
smart technology controller which allow user to switch on/off and
customize lighting mode by a remote controller.
Solar Powered LED Street Lights Specification:
| Product Name | Solar Powered LED Street Lights |
| Model No. | TR-S 200W | TR-S 300W | TR-S 400W |
| Watts | 200W | 300W | 400W |
| Battery | 3.2V/15AH | 3.2V/20AH | 3.2V/30AH |
| Solar panel | 5V/18W Monocrystalline silicon | 5V/22W Monocrystalline silicon | 5V/28W Monocrystalline silicon |
| Size of lamp | 435x273x79mm | 533x273x79mm | 653x273x79mm |
| Installation height | 4-5 Meters | 5-6 Meters | 6-8 Meters |
| Color Temperature | 2700-6500K |
| Material of housing | ABS |
| Lamp viewing angle | 75x130° PC |
| IP class | IP65 |
| Working mode | Light control+remote control |
| Applications | Applicable to light up public areas including Parks, Parking lots,
Train Stations, Roads, Streets, Playgrounds, walkways, pathways
etc. |
| Model | Battery | Chip Type | RA | Luminous Flux | Lamp Viewing Angle | CCT |
| TR-S 200 | 3.2V 15Ah LiFePO4 | SMD2835 | 70 | 1200lm | 75°*130° | 2700-6500K |
| TR-S 300 | 3.2V 20Ah LiFePO4 | 70 | 1800lm |
| TR-S 400 | 3.2V 30Ah LiFePO4 | 70 | 2200lm |

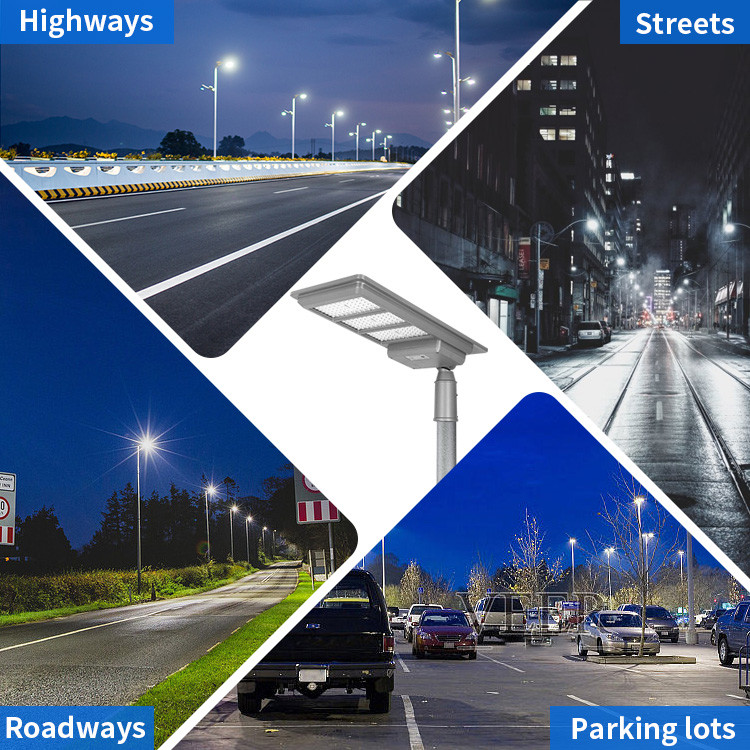

Solar Powered LED Street Lights Application
HIGHWAY, AIRPORT, HARBOR, PORT, SEASHORE WALKWAY, PARK PATHWAY,
OFFICE BUILDING, INDUSTRIAL ZONE, ETC.
