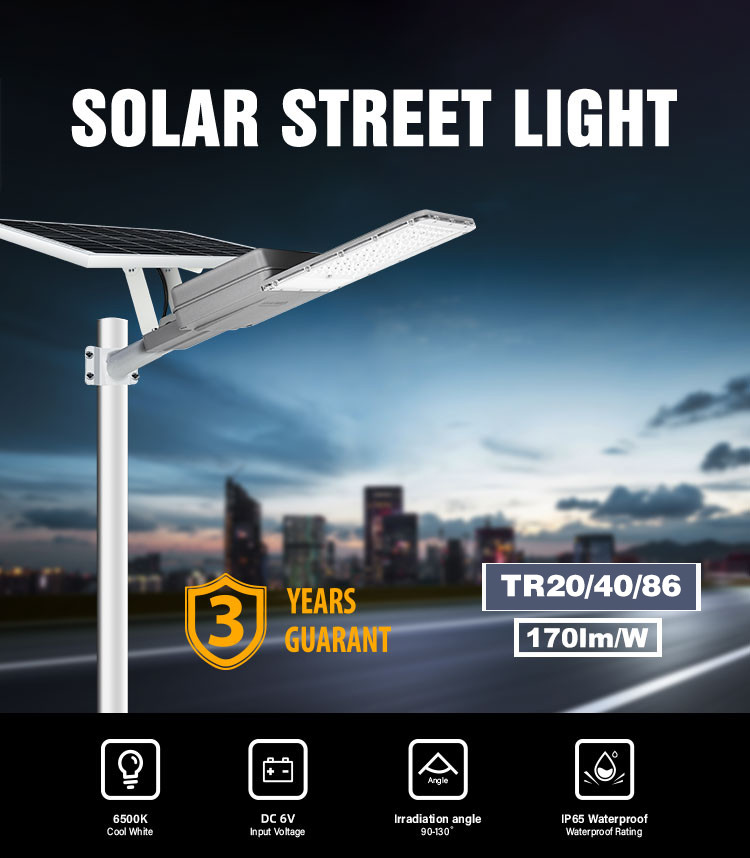

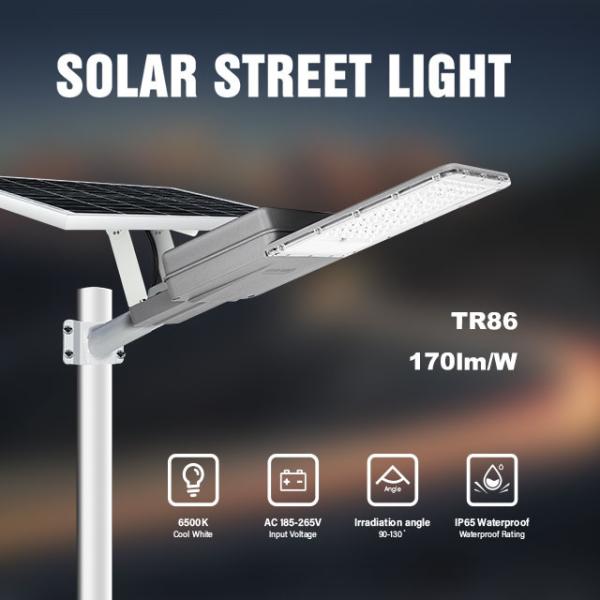

Aluminum Design Seperated Solar Powered Outdoor Street Lamp Led
Street Light DC 100W 200W 300W 400W IP66
Aluminum Seperated Solar Powered Led Street Light Description
Aluminum seperated solar powered led street light has divided the
solar lighting system into two parts. One is the solar panel, the
other one is the complex of the LED, controller and battery. It's
wireless, so customers just need to connect the solar panel and the
complex, then the solar system will work automatically.
Aluminum Seperated Solar Powered Led Street Light Specification
| Product Name | Aluminum seperated solar powered led street light |
| Model No. | TR40-100W | TR86-200W | TR86-300W |
| Power | 100W | 200W | 300W |
| Size of Lamp | 569x204x55mm | 569x204x68.6mm | 569x204x68.6mm |
| Battery | 3.2V /40AH | 3.2V /86AH | 3.2V /86AH |
| Solar Panel | 5V/ 40W | 5V/ 60W | 5V/ 100W |
| Installation Height | 8-10 Meters | 10-12 Meters | 10-12 Meters |
| Beam Angle | 104° |
| IP Class | IP65 |
| Color Temperature | 3000K/4000K/6000K |
| Housing Color | Gray |
| Housing Material | Aluminum |
| Working Temperature | -20℃~50℃ |
| Charging Time & Working Time | Charging Time:5-6 hours. Auto Working Mode:Full charged can work
for 10 hours and 7 rainy day backup. | Charging Time:6-8 hours. Auto Working Mode:Full charged can work
for 12 hours and 7 rainy day backup. |
| Model NO. | Power | Size:LxWxH(mm) | Ra | PF | Luminous Flux |
| KCD TR86 100W | 100W | 569x204x55mm | >80 | >0.9 | 170lm/w |
| KCD TR86 200W | 200W | 569x204x68.6mm | >80 | >0.9 | 170lm/w |
| KCD TR86 300W | 300W | 569x204x68.6mm | >80 | >0.9 | 170lm/w |
Aluminum Seperated Solar Powered Led Street Light Features
1. Seperated solar powered led street light 100W, IP65 protect
degree.
2. Professional optical lens, MC4 Plug in connection.
3. High lumen Bridgelux LED, the Max lumen is up to 170LM/W;
4. 100% aluminum housing, light weight and high radiating
performance.
5. Every element can be easily replaced by users, life span over
50,000hours.
6. Long lifespan LiFePo4 lithium battery, recycle time up to 2200s,
battery fix on the top of the pole,anti-theft design;
7. Intelligent dimming control and wireless control system, remote
control distance up to 15-20m.
8. 3 years free maintenance;
Aluminum Seperated Solar Powered Led Street Light Application
parking lots, streets, transits, outdoor areas, civil and military
security areas and so many more.
Installation procedure:
1. choose the right place and direction to install the light, make
sure the solar panel can be fully shined at day;
2. Fix the solar panel on the pole, and adjust the direction;
3. Fix the led light on arm, and adjust the direction:
4. Connect the solar panel and led.
FAQ
Q: What"s the advantage for LED Solar Street Light from KCD?
A: 12 years" experience in solar led street lights,outdoor LED
lighting, LED Solar Street Light More than 120 countries" clients
enjoy our solar street led lights,outdoor LED lighting,3000+
projects are successfully achieved all over the world. 2000+ square
meters production area,ISO9001 standard factory. Quality is our
culture. We have the A grade after sales team and offer you a
3-year warranty on all our products.
Q: What is your main product?
A: We mainly produce including solar street light, solar flood
light, led street light, led flood light, led high bay light, led
work light.
Q: Are you factory or trading company?
A: We have 3000 sqm modern factory, with 4 production lines. We
have 400 factory workers and 15 of them are quality control and
engineer guys. Welcome to visit our factory.
Q: How long is the lead time of orders ?
A: Normally 7-10days, If we have stock material, it only take
1-2days to send goods.
